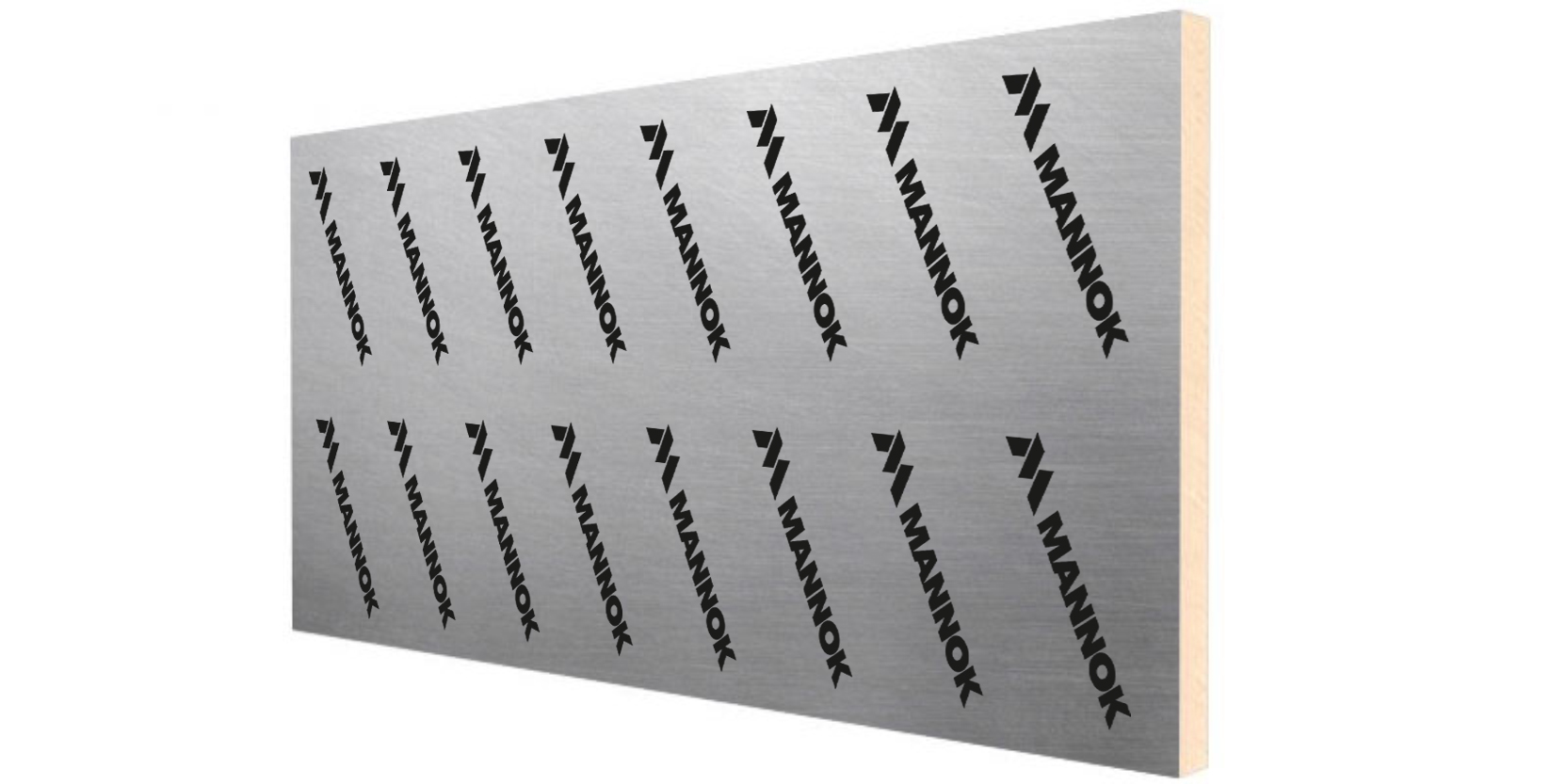

MANNOK THERM FLOOR / MF PIR BOARD 2400X1200MM

Mannok Therm Floor / MF insulation (previously Quinn Therm QF) is a high performance, fibre free board, with a rigid thermoset insulation core and faced on both sides with a low emissivity composite foil facing.
It is suitable for new build and refurbishments projects in both domestic and commercial build. With specific properties that optimise the performance of underfloor heating.
The high compressive strength of Mannok Therm Floor / MF enables it to withstand the dead and imposed loads transmitted through the floor. It also reduces heat loss by an air infiltration method, making it the ideal solution for upgrading the thermal performance of existing floors.

Board size 1200 x 2400mm and thickness options 25mm-150mm.

Manufacturer: Mannok

SKU: IXAA40300

Availability:

Subject to Size

Size: *

Overview
Contact Us

Mannok Therm Floor / MF insulation is a high performance, fibre free board, with a rigid thermoset insulation core and faced on both sides with a low emissivity composite foil facing.

Specification:
- Suitable for new build and refurbishments projects in both domestic and commercial build.
- Low thermal conductivity, minimising the thickness required to achieve the design U-value.
- Certified under BBA certificate number 07/4444 and IAB certificate number 05/0223.
- Zero ozone depletion potential (zero ODP) and low global warming potential (GWP).
- Achieves an A+ rating when compared to the BRE Green Guide

Performance & Properties:
- Board size (mm): 1200 x 2400
- Thickness (mm):20mm – 150mm
- Thermal Conductivity (λ): 0.022w/mk
- Facers: Low emissivity foil facers
- Core water vapour resistivity: ≅300MNs/gm
- Compressive strength: >150kPa
