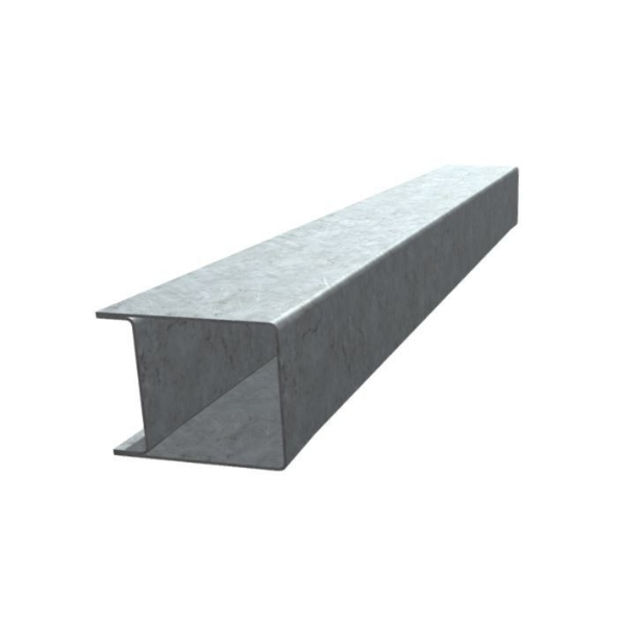

BIRTLEY SB140 STANDARD DUTY INTERNAL BOX LINTEL

Birtley Heavy Duty Interal Wall Box Lintel. Loadbearing Walls – Internal block walls (plastered).
Cavity: 140mm - Internal block wall (plastered)

Birtley are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings. The supergalv coating offers superior life expectancy and the post-fabrication galvanizing leaves no surface with interior paint protection.
Manufacturer: Birtley Lintels
SKU: IXGS01922
Out of stock
*
Birtley are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings. The supergalv coating offers superior life expectancy and the post-fabrication galvanizing leaves no surface with interior paint protection.

Features
-Post-fabrication galvanizing leaves no surface with inferior paint protection
-Structural grade steel to EN10025

Installation requirements
1. Bed fully on bricklaying mortar
2. Must be used with a cavity tray - External walls only
4. 150mm Minimum end bearing

Brand: Birtley
Generic Ref: SB140
Product Range: Single Leaf Internal Walls
Cavity Product Type: Standard Duty Internal Wall Box Lintel - 140mm Block
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009
Insulation: Expanded Polystyrene - BREEAM rating A+
Fire Rating: 60 mins (with 2 coat plaster finish)
Products specifications
Attribute name Attribute value
Range Single Leaf Internal Walls
*
*
*
*
