Birtley are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings. The supergalv coating offers superior life expectancy and the post-fabrication galvanizing leaves no surface with interior paint protection.
Structural grade steel to EN10025
Installation requirements
1. Bed fully on bricklaying mortar
2. Must be used with a cavity tray - External walls only
3. 150mm Minimum end bearing
Brand: Birtley
Generic Ref: SB140HD
Product Range: Single Leaf Internal Walls

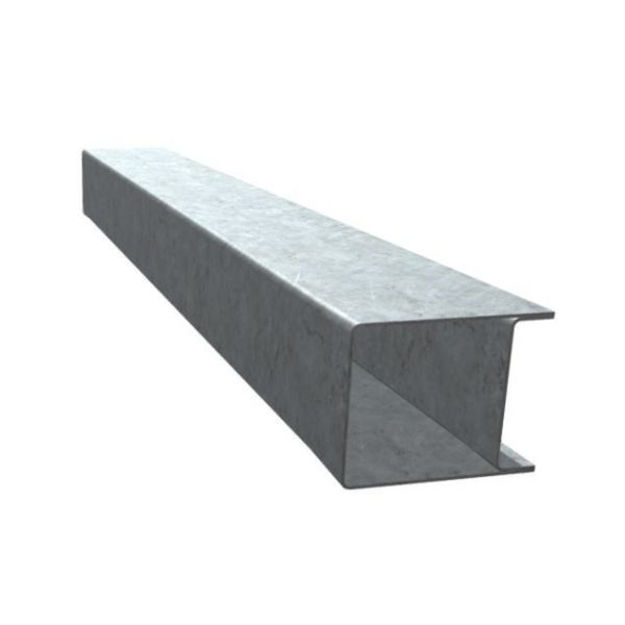

Cavity Product Type: Heavy Duty Internal Wall Box Lintel - 140mm Block
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009
Insulation: Expanded Polystyrene - BREEAM rating A+
Fire Rating: 60 mins (with 2 coat plaster finish)
Products specifications
| Attribute name |
Attribute value |
|
Range
|
Single Leaf Internal Walls |
