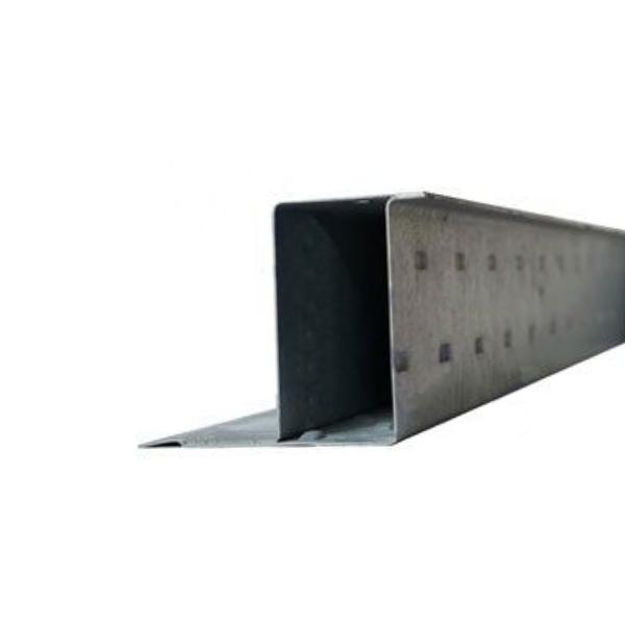

BIRTLEY SBL200 MEDIUM DUTY SOLID WALL LINTEL

Manufacturer: Birtley Lintels
Birtley Medium Duty Solid Wall Lintel.
Cavity: 200-215mm

Birtley are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings. The supergalv coating offers superior life expectancy and the post-fabrication galvanizing leaves no surface with interior paint protection.
Manufacturer: Birtley Lintels
SKU: IXGS01958
Out of stock
*
Birtley are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings. The supergalv coating offers superior life expectancy and the post-fabrication galvanizing leaves no surface with interior paint protection.

Features
-Supergalv coating offers superior life expectancy
-Post-fabrication galvanizing leaves no surface with inferior paint protection
-Structural grade steel to EN10025

Installation requirements
1. Bed fully on bricklaying mortar
2. Must be used with a cavity tray - External walls only

Brand: Birtley
Generic Ref: SBL200
Product Range: Solid Wall Lintels
Cavity Product Type: Medium Duty Solid Wall Lintel 200-215mm
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009
Fire Rating: 60 mins (with 2 coat plaster finish)
